Aquamor BGX-C  ·  105221
BGX-C Manifolds

105221

Aquamor BGX-C  ·  1+1A

Application

BGX 1+1A Manifold, 1 in NPT, Rinse Valve and Pressure Gauge

The 105221 is the 1+1 arrangement built on 1 inch NPT connections rather than the standard 3/4 inch, with a rinse valve and pressure gauge. The engineering drawing shows the same two head layout and the same series crossover as the 105216, so the water path is identical; the A designation marks the larger port size and the alternate outlet fitting.

One cartridge, then a second in series to polish

BGX-C 1+1A flow pathWater enters a single inlet line and divides at a distribution header into 1 equal branches, one for each of 1 filter cartridges arranged in parallel. The 1 branches rejoin at a collection header into a single line, and all of that combined flow then passes through one additional cartridge in series, a final polish stage, before reaching the outlet. Every drop of water passes through the polish stage; only the first bank of cartridges splits the flow.1 PARALLEL, THEN 1 IN SERIESBANK SPLITS FLOW; FINAL STAGE TAKES ALLINLET1AStage 2POLISH STAGEOUTLET

Scroll the diagram sideways to see the full flow path.

In a 1+1 manifold, all the water passes through the first cartridge, then every drop of that same water passes through a second cartridge downstream before it leaves the manifold. Nothing is split: the two cartridges are in series, so the second one is a polish stage that adds a further treatment step rather than added flow capacity. It is a way to layer two different jobs, for example a sediment stage ahead of a taste-and-odor stage, onto one water stream.

Typical application. Applications that need a second treatment step on the full flow rather than more volume.

Part Number 105221
Series Aquamor BGX-C
Configuration 1+1A
Flow Arrangement One in parallel, then one in series
Filter Heads 2
Port Size 1 in NPT
Rinse Valve Yes
Pressure Gauge Yes
Mounting Wall mount
More in the Aquamor Manifolds range
Ready to spec this manifold?
Our Customer Service team will route your inquiry to the right people: engineering, sales, or support. Response typically within two business days.
Contact Customer Service

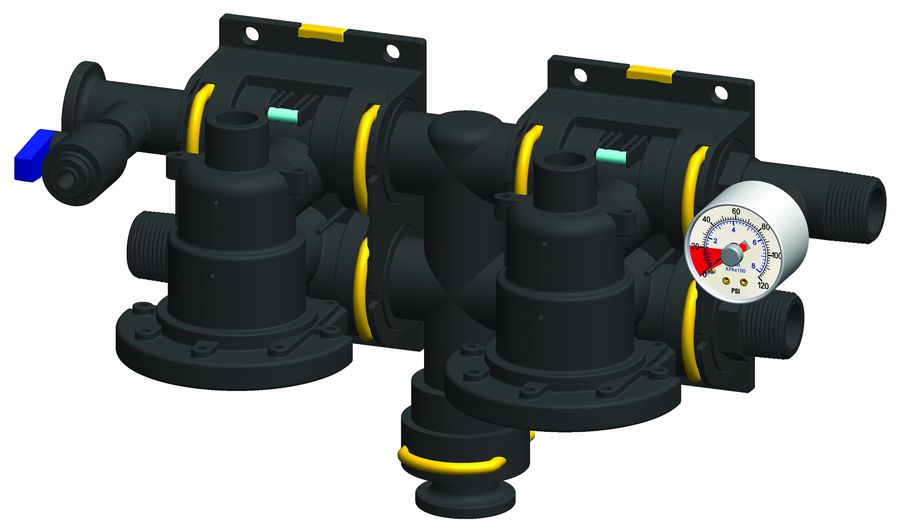

Aquamor BGX-C 1+1A filter manifold, part number 105221
