Aquamor BGX-C  ·  105225
BGX-C Manifolds

105225

Aquamor BGX-C  ·  Quad

Application

BGX Quad Manifold, 1 in NPT, Rinse Valve and Pressure Gauge

The 105225 is a four-cartridge parallel BGX manifold on 1 inch NPT, a larger connection than the 3/4 inch quad 105215, with rinse valve and pressure gauge standard. It is the highest-flow single-manifold option in the BGX lineup covered here.

Four cartridges in parallel, the largest bank

BGX-C Quad flow pathWater enters a single inlet line, then divides at a distribution header into 4 equal branches, one for each of 4 filter cartridges arranged in parallel. Each cartridge filters only its own share of the flow. After the cartridges, the 4 branches rejoin at a collection header into a single outlet line.PARALLEL BANK OF 4FLOW SPLITS ACROSS EVERY CARTRIDGEINLETABCDOUTLET

Scroll the diagram sideways to see the full flow path.

A quad manifold divides incoming water across four cartridges running side by side and recombines the four streams on the outlet. Splitting the load four ways is how this family supports its highest combined flow rate and its longest combined capacity before any cartridge needs changing. Each gallon still only passes through one cartridge; the four positions exist to carry more total volume.

Typical application. The highest-draw sites in the lineup, where even a triple bank would be undersized.

Part Number 105225
Series Aquamor BGX-C
Configuration Quad
Flow Arrangement Four cartridges in parallel
Filter Heads 4
Port Size 1 in NPT
Rinse Valve Yes
Pressure Gauge Yes
Mounting Wall mount
More in the Aquamor Manifolds range
Ready to spec this manifold?
Our Customer Service team will route your inquiry to the right people: engineering, sales, or support. Response typically within two business days.
Contact Customer Service

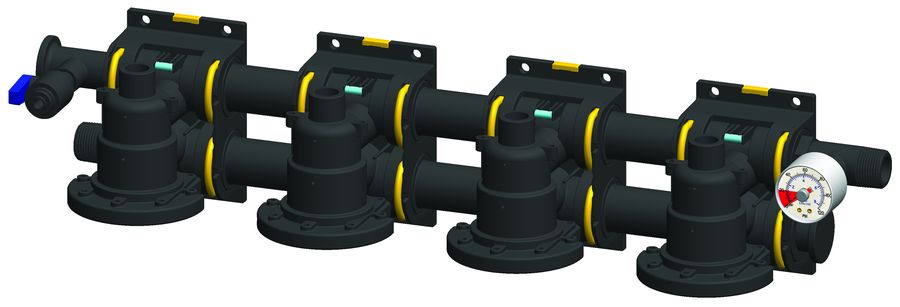

Aquamor BGX-C Quad filter manifold, part number 105225
Product Line Aquamor BGX-C filter manifolds. See the full manifold line.
