2026 Edition
Flow Restrictors | Mounting Clips | Membrane Housings
Aquamor®, LLC, Temecula, California
The OEM components in this catalog are designed, tooled, and produced in-house at Aquamor's Temecula facility. No contract molder queue. No offshore lead time uncertainty. The same manufacturing discipline that holds zero-defect supplier scorecards applies to every component we ship.
The Aquamor OEM division runs the full manufacturing chain for your program in Temecula, California. The handoffs that usually create risk happen inside one company, on one schedule: your spec, your tooling, your volume.
In-house engineers develop your system architecture to spec: flow rate, micron rating, certification target, and housing geometry defined before a tool is cut.
26 injection-molding machines in-house, from 60 to 775 tons, running a tool library of over 400 active injection molds. Your housings, heads, and structural parts are molded on Aquamor's schedule, no contract-molder queue setting your lead time.
Aquamor manufactures filtration products certified to NSF/ANSI 42 and 53, with CSA B483.1 across applicable lines. Certification attaches to the finished filter cartridge, and every certified SKU is traceable from raw material to finished unit.
Private-label packaging, retail-ready programs, and fulfillment shipped direct from Temecula. One team. One schedule. One address: 42188 Rio Nedo, Temecula, CA 92590, where engineering, molding, production, and fulfillment all live.
A Tier-1 national beverage-equipment manufacturer needed a filter-cartridge supplier it could put on its approved-supplier list and forget about. Aquamor earned that approval and held it. Across 20,552 units measured on the customer's own supplier scorecard over the first quarter of 2026, the result was zero defects and zero returns. When a manufacturer ships filters inside its own branded equipment, that is the number that matters.
Send a drawing, a sample, or a current part number. The engineering team responds the same business day to tell you whether Aquamor can build it, cross it, or improve it. And if it is not a fit, you hear that too. Free engineering review. Honest answer either way.
Inline flow control components for reverse osmosis and water-treatment systems. Available in FNPT and quick-connect configurations across a wide range of rated flow rates.
Aquamor flow restrictors are precision-molded in-house for consistent dimensional tolerance across the flow range. Available in inline FNPT and inline quick-connect formats. All flow rates are nominal; consult the engineering team for tolerance specs and custom flow-rate requirements.
Flow rates are nominal mL/min at rated conditions. Multiple rates available per model. See spec pages for full range.
| Model | Part No. | Connection Type | Body Length | Flow Rate Range (mL/min) |
|---|---|---|---|---|

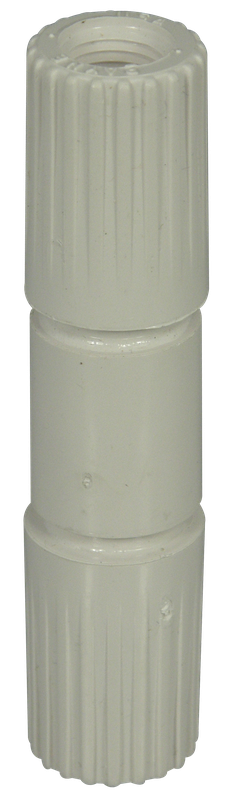

| PFR-402FI | Set by flow rate | 1/4 in FNPT | 3-7/8 in | 80–2,800 |

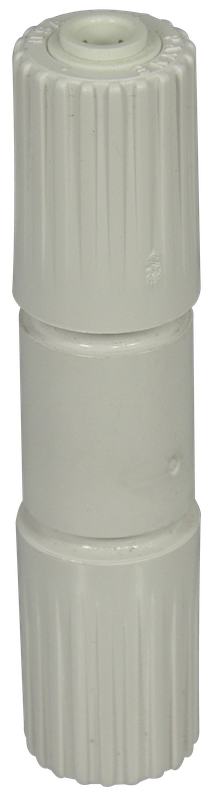

| PFR-402QI | Set by flow rate | 1/4 in quick-connect | 4 in | 80–2,800 |
If your application requires a specific rated flow not listed above, send the spec to the engineering team. Other rates may be available built to order at minimum volume, upon request.
Heavy-duty injection-molded mounting clips for filter housings and cartridges. Available in black and white, single and dual-mount configurations, sized for 2 in. and 2.5 in. filter bodies.
Aquamor mounting clips are produced on Aquamor's own tooling in Temecula. Heavy-duty and standard-duty variants are available in black and white to match OEM equipment aesthetics. Single-mount and dual-mount (2x2) configurations are stocked.
| Model | Part No. | Description | Color | Configuration |
|---|---|---|---|---|
| PPC-202B | 601051 | Mounting clip, 2.5 in., heavy duty | Black | Single, mounts 2 in. body |

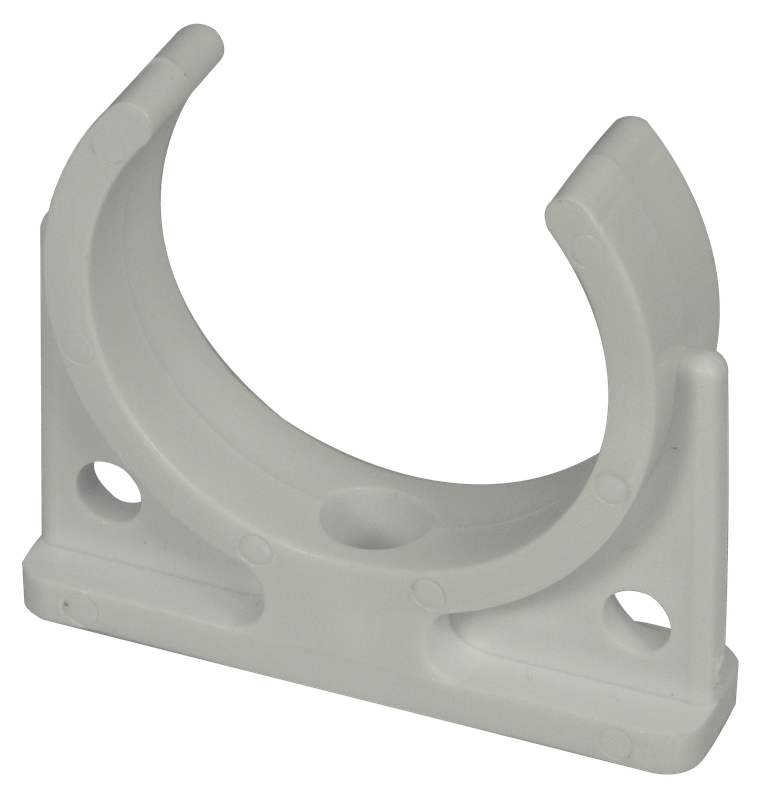

| PPC-202W | 601052 | Mounting clip, 2.5 in., heavy duty | White | Single, mounts 2 in. body |
| PPC-204B | 601053 | Mounting clip, 2 in. | Black | Single, mounts 2 in. body |
| PPC-204W | 601055 | Mounting clip, 2 in. | White | Single, mounts 2 in. body |
| PPC-208B | 601061 | Mounting clip, 2x2 dual | Black | Dual, mounts two 2 in. bodies |

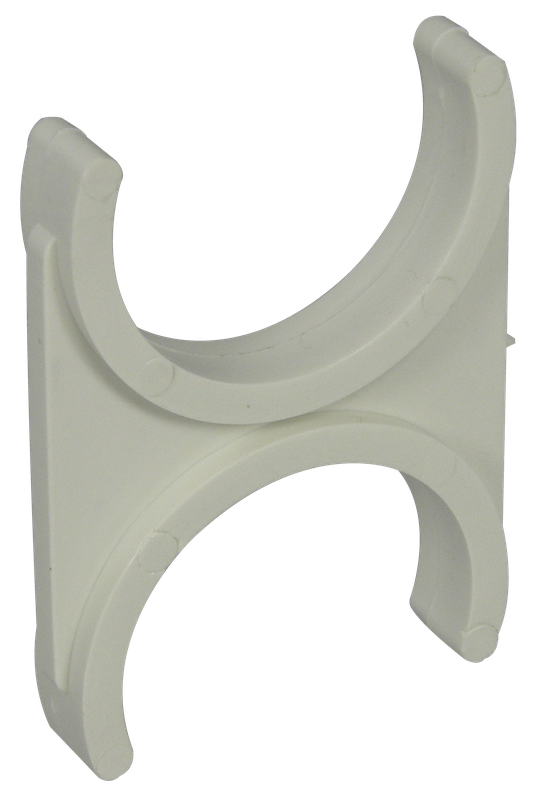

| PPC-208W | 601063 | Mounting clip, 2x2 dual | White | Dual, mounts two 2 in. bodies |

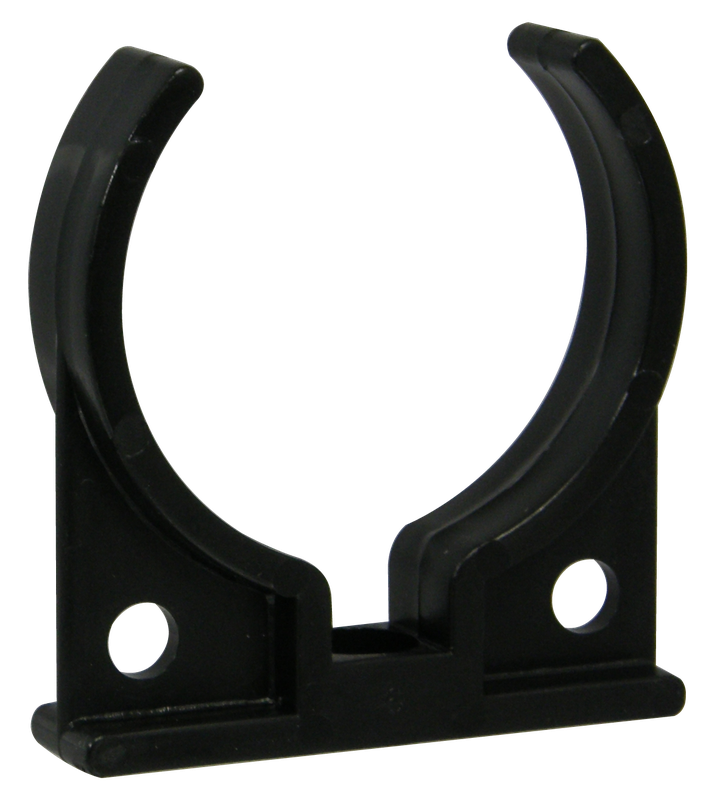

| PPC-212B | 601064 | Mounting clip, 2.5 in. | Black | Single, mounts 2 in. body |
| PPC-212W | 601066 | Mounting clip, 2.5 in. | White | Single, mounts 2 in. body |

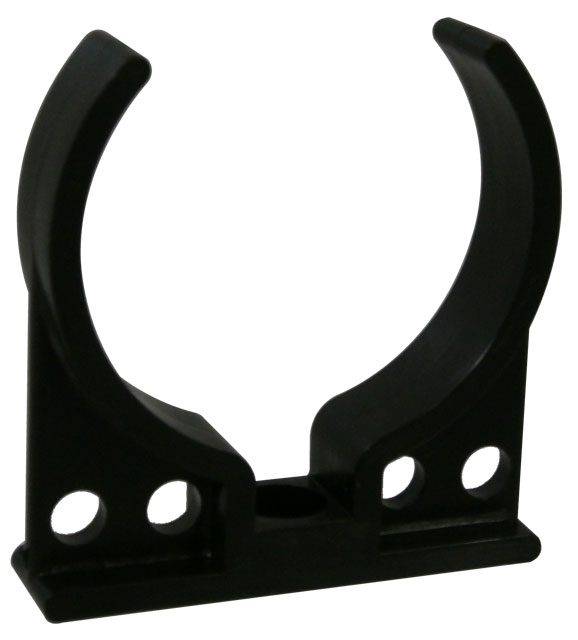

| PPC-214B | 601067 | Mounting clip, 2.5 in. | Black | Single, mounts 2 in. body |

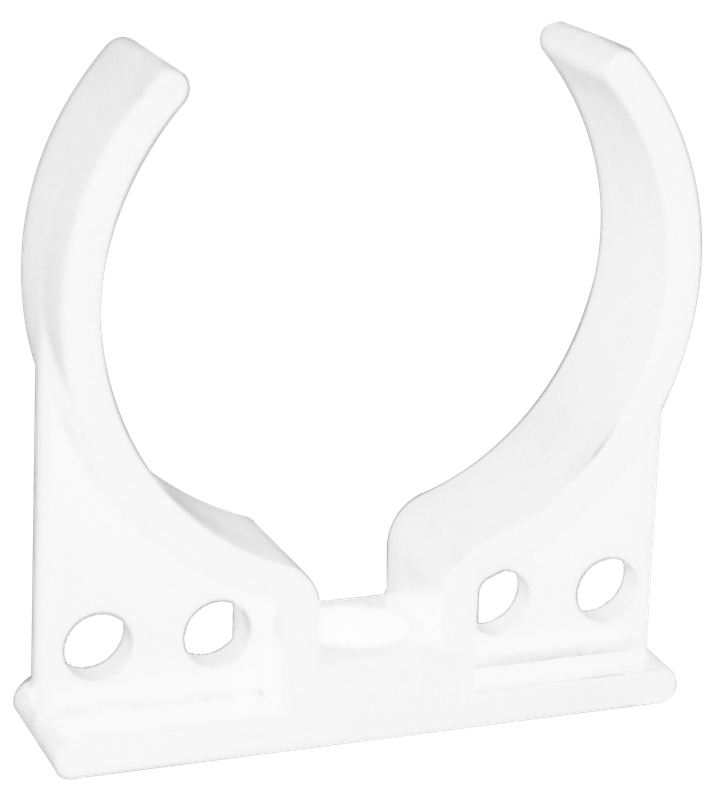

| PPC-214W | 601068 | Mounting clip, 2.5 in. | White | Single, mounts 2 in. body |
Injection-molded RO membrane housings for 1/8 in. FNPT and quick-connect plumbing. Available in straight-port and side-port configurations in black and white.
Aquamor PPV-series membrane housings are engineered for RO membrane cartridges and are produced in-house on Aquamor's tooling. Straight-port and side-port variants cover the primary installation geometries. Quick-connect option available. Available in black and white for OEM color-match requirements.
| Model | Part No. | Connection | Port Configuration | Color |
|---|---|---|---|---|
| PPV-110W | PPV-110W | 1/8 in. FNPT | Straight ports | White |
| PPV-111BK | PPV-111BK | 1/8 in. FNPT | Side ports | Black |
| PPV-111W | PPV-111W | 1/8 in. FNPT | Side ports | White |
| PPV-111W-QC | PPV-111W-QC | 1/4 in. QC side ports, 1/8 in. FNPT cap port | Side ports | White |
Aquamor's in-house tooling capability supports custom port configurations, colors, and fitting types. If an off-catalog variant fits your application, send the spec and the engineering team will evaluate against existing tooling and mold modifications.
Send current part numbers. The engineering team responds the same business day, mapping every SKU to an Aquamor equivalent, flagging any gaps, and giving you a side-by-side comparison: spec, certifications, and format. No commitment to switch. No pressure to move fast. Just a clear picture of what a change actually looks like.
Send a drawing, a sample, or a current part number. We tell you whether we can build it, cross it, or improve it, the same business day.
Contact the OEM TeamSend current part numbers and we will map every SKU to an Aquamor equivalent, flag gaps, and deliver a side-by-side comparison. Free cross-reference. No commitment to switch.
Request a Switch AuditHave a filtration challenge that does not fit a standard catalog answer? The engineering team takes calls directly. Twenty minutes is usually enough to know whether we can solve it.
Book an Engineering ConsultEvaluate a component in your application before committing to a full program. Contact the OEM team to arrange sample shipment.
Request a SampleOEM price lists are provided upon request based on program volume, configuration, and terms. Contact the OEM team via the link above or at 42188 Rio Nedo, Temecula, CA 92590 to receive the current OEM price list and program terms.
